Flat Metal Roofs: Understanding Leaking Issues

How to Identify and Correct Common Issues with Flat Roofs for Central Coast Residences

Though flat roofs are not the predominant choice in Australia, their appeal is growing among both residential and commercial properties. These roofs are often found on patios, carports, walkways, and in spaces requiring a low-pitch roofing solution. In instances where the incline is minimal, flat roofs may also be referred to as “skillion roofs.”

Flat roofs present a range of benefits but also come with distinct challenges that homeowners must be aware of. Recognising the common issues associated with flat roofing systems and proactively implementing strategies to mitigate them is essential, particularly on the Central Coast, where the coastal climate, heavy rainfall, and salt-laden air can exacerbate roofing complications.

What Factors Are Driving the Increasing Popularity of Flat Roofs Among Homeowners?

Flat roofs are becoming more desirable in both residential and commercial buildings for various compelling reasons:

• They are quicker and simpler to install, enabling faster project completion timelines.
• They provide easier maintenance access, making routine inspections and repairs more straightforward.
• They serve as perfect platforms for solar panel installations, enhancing energy efficiency.

The foremost concern with flat roofs revolves around managing water drainage. Water is the primary adversary for your roof. When planning a new roof installation or updating an existing one, it is essential to consider a variety of factors, particularly rainfall patterns, which can vary significantly across different regions of Australia.

What Are the Major Drainage Issues Associated with Flat Roofs?

Unlike pitched roofs that allow rainwater to flow off quickly into gutters, flat roofs feature a minimal slope. This design can lead to water accumulation that may persist for prolonged durations. If water is not effectively directed off the roof, it may lead to:

• Surface discolouration and deterioration of roofing materials.
• Structural weakening of roofing components over time.
• Build-up of mould and mildew, which can pose significant health risks.
• Leaks that may penetrate into the building's interior.

To resolve these issues, it is crucial to focus on effective roof plumbing and thoughtful design that addresses the specific challenges associated with flat roofs.

How to Maximise Drainage Efficiency in Flat Roof Designs

Before installation, a qualified roofing contractor will evaluate several critical factors that influence drainage efficiency:

• Local rainfall intensity and prevalent weather patterns.
• Overall roof area and precise measurements.
• Gutter configurations and effective drainage outlets.
• Specifications and dimensions of downpipes.
• Options for overflow prevention to manage excess water.
• Considerations regarding roof pitch to enhance drainage capabilities.

Most roofing manufacturers advocate for a minimum slope of 5° for low-pitch roofs. Roofs with a slope less than this can jeopardise waterproofing efforts and may even void product warranties, resulting in expensive repairs.

Standard corrugated roofing sheets, while well-suited for pitched roofs, do not perform adequately for very low-pitch applications. For flat roofs, specific roofing profiles engineered for efficient water shedding are highly recommended to ensure long-lasting performance.

What Are the Best Metal Roofing Profiles for Low-Pitch and Flat Roof Applications?

Among the most recommended roofing profiles for low-pitch and flat roofs are:

Trimdek: This versatile profile is suitable for both roofing and wall applications. Its 28mm rib height and uniquely designed capillary groove significantly enhance water tightness, even at a minimal pitch of 2°.

Kliplok: This innovative clipped roofing profile utilises hidden clips instead of screws to secure the sheets. This design effectively prevents water ingress through screw penetrations, making it an excellent option for low-pitch installations.

Choosing the right roofing profile based on your roof pitch and local rainfall conditions is essential for ensuring the durability and reliability of your roofing system.

How to Effectively Manage Box Gutters and Drainage on Flat Roofs

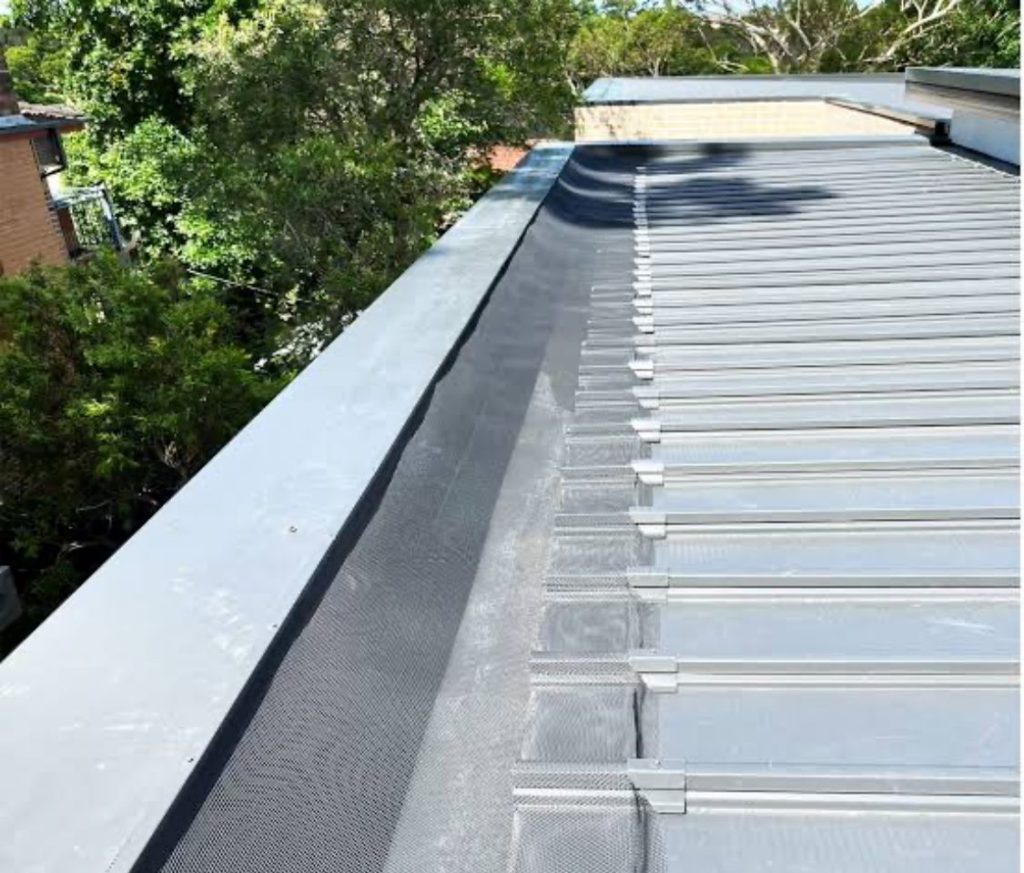

On flat roofs, box gutters are commonly used to connect roof panels to drainage outlets. Given that box gutters are positioned below the roof plane, they require meticulous detailing and installation to prevent blockages and water back-up issues.

Common challenges associated with box gutters encompass:

• Accumulation of debris from nearby trees and foliage.
• Improper fall or slope that obstructs water flow.
• Overflowing back into the roof structure, which can result in leaks.
• Blocked downpipes that hinder effective drainage.

Addressing these challenges begins with proper gutter design and a commitment to regular maintenance to ensure optimal functionality.

What Key Considerations Should You Make When Choosing Guttering for Your Flat Roof?

Standard gutters may not adequately accommodate the water flow demands of flat roofs. It is often necessary to install guttering specifically designed to manage larger water capacities. Next, we will explore various drainage and overflow options that can be integrated into your flat metal roof design.

• Facilitate quicker water removal during heavy rainfall.
• Effectively sweep debris away with high flow capabilities.
• Provide easier cleaning and maintenance options for homeowners.

Our top recommendation for gutters is self-cleaning designs, ideal for flat metal roofs while also delivering an aesthetically pleasing appearance!

We advocate for a half-round gutter due to its superior water-carrying capacity, allowing for faster drainage. This design efficiently sweeps away silt and sludge build-ups with each rainfall, ensuring a cleaner system over time.

For optimal performance on flat roofs, gutters should be adequately sized based on local rainfall patterns and connected to appropriately sized downpipes (for example, 100mm × 75mm) capable of managing substantial water volumes. In areas with abundant trees, installing leaf diverters or guards can significantly reduce blockage issues.

How Do Flashings Prevent Water Entry at Roof Joints?

Flashings are vital components installed at joints where roof sheets intersect with walls or other surfaces, including around skylights, chimneys, and at internal corners. On flat roofs, proper flashing installation is crucial, as water can collect around these joints if not adequately sealed.

To effectively prevent water ingress:

• Flashings must be meticulously shaped to fit the roof profiles.
• Waterproof sealants should be applied at all joints to ensure tight seals.
• Extra attention is required at corners and seams where water may accumulate.

By ensuring that flashings and sealants are installed correctly, you can achieve a water-tight roof, even during heavy rainfall. Our team takes extra precautions during installation and utilises high-quality waterproof sealant to prevent pooling water in these vulnerable areas.

Why Is Routine Maintenance Essential for the Longevity of Flat Roofs?

Flat roofing systems, especially those connected to box gutters, require regular inspections and maintenance to ensure their effectiveness. This includes:

• Removing debris from gutters and box gutters to ensure clear drainage.
• Checking downpipes for any signs of potential blockages.
• Inspecting roof surfaces for minor cracks or areas where water may accumulate.
• Re-sealing flashings as necessary to maintain waterproof integrity.

Carrying out routine maintenance checks can prevent the need for more extensive repair work in the future, thereby extending the lifespan of your roofing system.

Explore the Benefits of Properly Installed Flat Roofs

When designed and installed by experienced metal roofing professionals, flat roofs offer:

• A modern, sleek architectural aesthetic that enhances property value.
• Optimised space for patios, decks, or utility services, maximising functionality.
• Convenient access for maintenance or solar panel installation, simplifying upkeep.

Moreover, flat roofs can seamlessly integrate with existing pitched roof structures when drainage and detailing are managed appropriately, enhancing the overall functionality and appearance of the building.

How to Ensure You Receive the Right Flat Roof Installation on the Central Coast

A well-designed and expertly installed flat metal roof can provide both functionality and long-lasting durability in the coastal environment. Whether you are starting a new construction project, extending a patio, or adding a carport, selecting the right roofing system and drainage design is crucial for optimal performance and longevity.

Contact AWS Roofing today to request a quote and secure your installation date. With another wet summer approaching, now is the perfect time to address any roofing issues and prevent more significant problems in the future.

Flat Roof Frequently Asked Questions: Do Flat Roofs Encounter More Problems Than Pitched Roofs?

Flat roofs can indeed face more drainage challenges if they are not designed correctly. Without an appropriate slope, water may pond or leak into the building's structure. However, when constructed with the right pitch, roofing profile, box gutter design, and flashing techniques, flat roofs can be just as resilient as pitched roofs.

What is the Ideal Roof Pitch for a Flat or Low-Slope Roof?

Most roofing manufacturers recommend a minimum pitch of 5 degrees for metal flat roofs. Profiles such as Trimdek and Kliplok can operate effectively at pitches as low as 2 degrees when installed correctly and properly sealed against water. Anything below 5 degrees requires careful selection of materials and detailed guttering strategies to ensure adequate drainage.

Is it Feasible to Install Solar Panels on a Flat Metal Roof?

Absolutely, flat metal roofs are perfect for solar panel installations. The accessible surface simplifies the installation process and enhances safety. Typically, panels are tilted on angled mounts to optimise sun exposure and prevent water from pooling underneath, ensuring efficiency in energy production.

What Exactly Are Box Gutters and Why Are They Used on Flat Roofs?

Box gutters are internal roof gutters situated below the roof line, often placed between roof sections or along parapet walls. They are commonly employed on flat roofs to effectively manage runoff; however, they must be carefully sized and sloped to avoid blockages and overflow issues that could compromise the roof's integrity.

Do Flat Roofs Require Special Gutters or Downpipes?

Yes, flat roofs typically necessitate higher-capacity gutters and larger downpipes to efficiently manage water drainage. Half-round gutters and 100x75mm downpipes are frequently used to enhance flow and prevent water accumulation. Additionally, overflow devices and leaf diverters may be beneficial in reducing maintenance requirements.

What Is the Lifespan of a Flat Metal Roof?

When installed correctly, equipped with proper drainage, and maintained regularly, a flat Colorbond or Zincalume metal roof can last anywhere from 20 to 30 years or even longer. Keeping box gutters clear and resealing flashings as needed will significantly enhance the roof's lifespan and performance.
